Infusion Paste Packaging Machine

Infusion Paste Packaging Machine

Infusion band packaging machine is a dedicated device specially designed and manufactured for hygienic material manufacturers by us, which is used for manufacturing infusion bands.


Share
product description

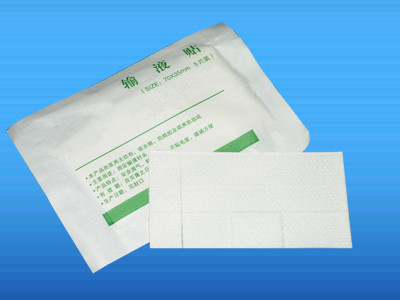

Sample of infusion paste

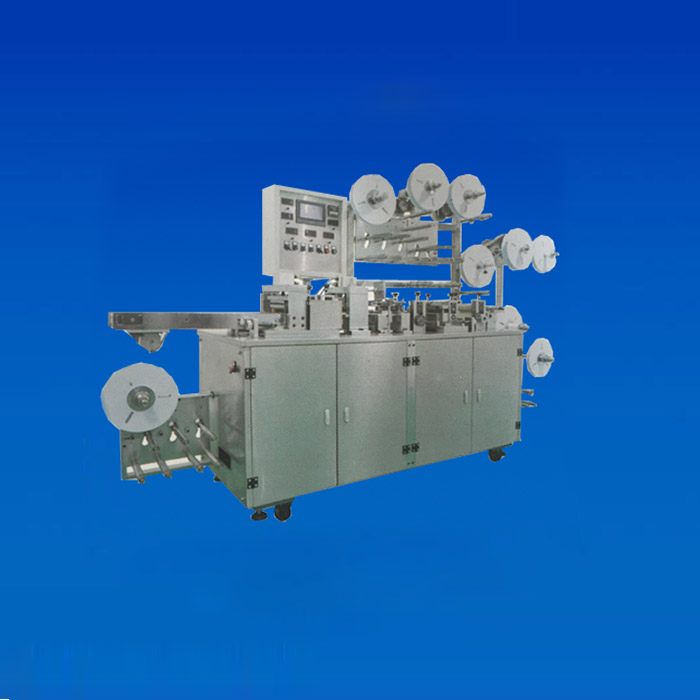

Infusion Paste Packaging Machine


1. Introduction:

Infusion band packaging machine is a dedicated device specially designed and manufactured for hygienic material manufacturers by us, which is used for manufacturing infusion bands.

The equipment adopts electromechanical-pneumatic integrative design, touch screen operation and PLC control.


2. Working procedures:

Jumbo roll uncoiling---interleaving paper peeling---die-cutting stripping---cutting and adding absorbent pad---covering with protecting film---slice molding---packaging--- packaging slicing---conveyor (counting step-by-step feeding)---box packing.


3. Equipment use:

Suitable for infusion bands of various specifications.

Packaging quatity: 1-5 patches.

Suitable for base materials of non-woven fabrics, breathable PE adhesive tape and so on. Packaging material: paper and pearlized film.


4. Brief description of main technical parameters and structure:



ModelZQSYT-2
Max diameter of material coil380mm
Max width of infusion band50mm*2strips
Infusion band max width50mm*2strips
Slicing speed240 patches/min. (2 strips)
Packaging modeHeat-sealing (flat pressing)
Max width of packaging70mm*2strips
Packaging modeHeat-sealing (flat pressing)
Feeding deviceServo drive
Packaging positioningColor code tracing
Uncoil tensionMagnetic powder tension control
ConveyorStep-by-step, counting conveying
Machine power3.5 KW
Power source380V
Overall dimension3200*750*1900mm
