Nasal Strips Packaging Machine

Nasal Strips Packaging Machine

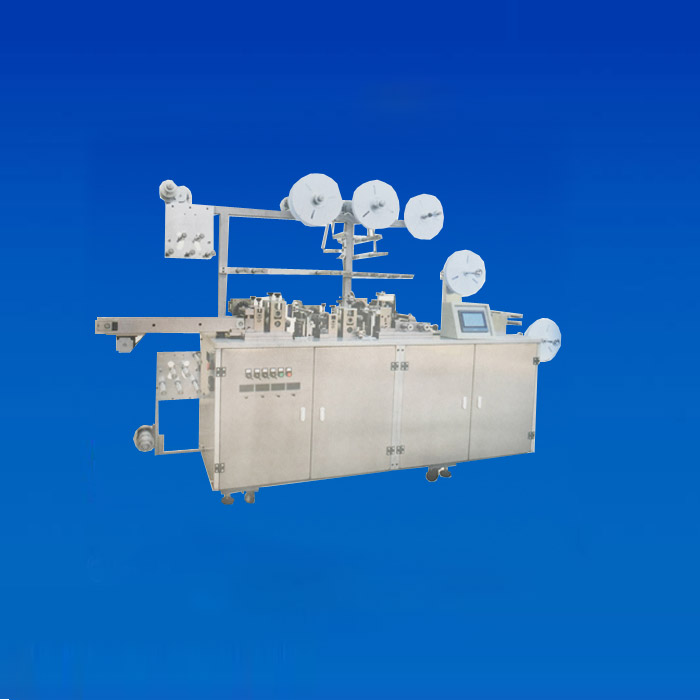

BTJ-1 Nasal Strips Packaging Machine is a kind of machine combined with punching adhesive tape acupoints, punching plastic strips (one or two), pasting release paper, molding slicing and packaging.

Share
product description

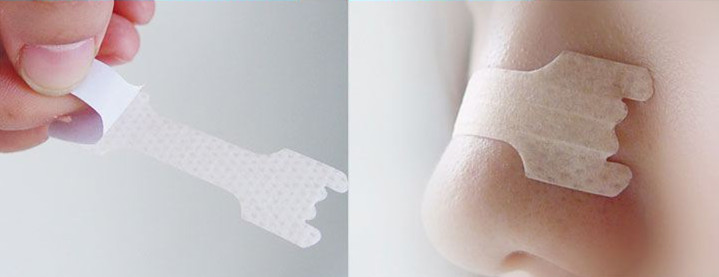

Samples of nasal strips

Nasal Strips Packaging Machine


1. Introduction:

BTJ-1 Nasal Strips Packaging Machine is a kind of machine combined with punching adhesive tape acupoints, punching plastic strips (one or two), pasting release paper, molding slicing and packaging. It has many advantages, such as less occupied area, quick packaging speed, easy operation and lower energy consumption.


2. Suitable for nasal strips taking non-woven fabrics, breathable PE adhesive tape, PU adhesive tape, etc. as base materials.


3. Technical parameters of equipment:

ModelBTJ-1
Max diameter of material coil350mm
Max width of adhesive tape90mm
Max specification of molding25*76mm
Max specification of packaging40*92mm
Packaging speed0-150 p/min
Machine power5KW
Power source380V
External dimension3000*650*1900mm
